Holdpeak Hp4070d Mini Digital Multimeter Resistancetester Capacitance Meter Inductance Transistor Test Electrical Instruments

Holdpeak Hp4070d Mini Digital Multimeter Resistancetester Capacitance Meter Inductance Transistor Test Electrical Instruments
  • Продавецww17.playrf.us
  • Список ценUS $42.85piece
  • Продажная ценаUS $42.85piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (612)

Oписание продукта

aeProduct.getSubject()

1, the basic accuracy of the output of up to 0.05 %, the output is displayed as 5

2 , Output: DC voltage , resistance, thermocouple , RTD
3, with 8 Thermocouple and RTD indexing 2
4, the thermocouple output, can provide high-precision automatic cold junction compensation
5, the operating performance is superior keyboard layout , setting the corresponding bit is set to display the output increase or decrease buttons and LCD
Power : 9V battery (ANSI / NEDA 1604A or IEC 6LR619V alkaline )
Battery life: about 25 hours
Maximum allowable voltage : 30V ( between each terminal and each terminal to ground )
Operating temperature range : 0 C ~ 50 C
Operating humidity range : 80% RH
Storage temperature range : - 10 C ~ 55 C
Storage humidity range : 90% RH
Size : 200 × 100 × 40mm ( with holster )
Weight : 550g ( with holster )
Accessories: manual, industrial test lead CF-733360 ( probe attached alligator clips )
Option : Industrial test leads CF-31-A ( probe clip )
Safety : Complies with IEC1010 terms ( Safety Standards promulgated by the International Electrotechnical Commission )

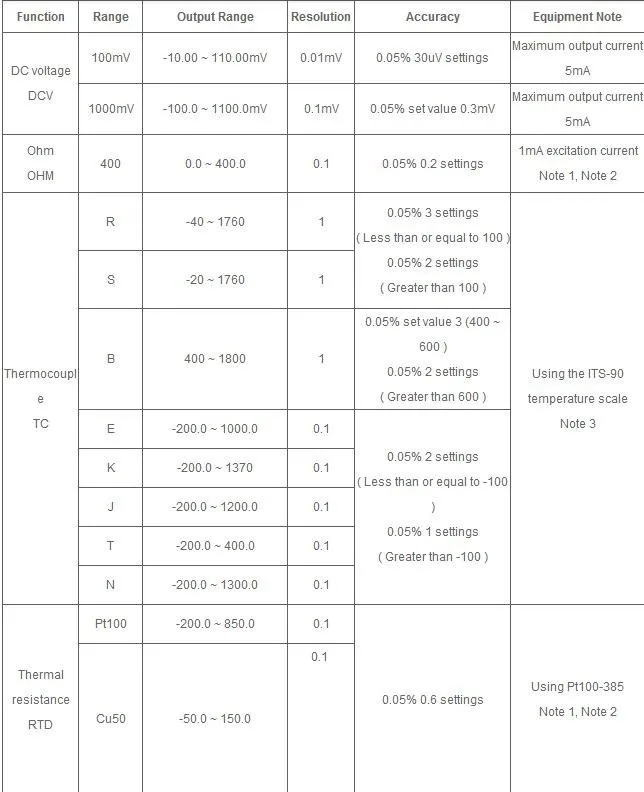

Output function [ apply within one year after calibration , 23 5 , 35 ~ 70% RH, accuracy = ( set value % + range % ) ]

Note:
1 free wire resistive part subsidiary
2 excitation current range of 0.5mA ~ 2mA, the maximum output voltage of £ 2V
3 Accuracy does not include internal temperature compensation sensor error
4 internal temperature compensation sensor range -10 ~ 50 C, compensation error £ 0. 5

5 Temperature coefficient 0.005% span / C (0 C ~ 18 C, 28 C ~ 50 C)
